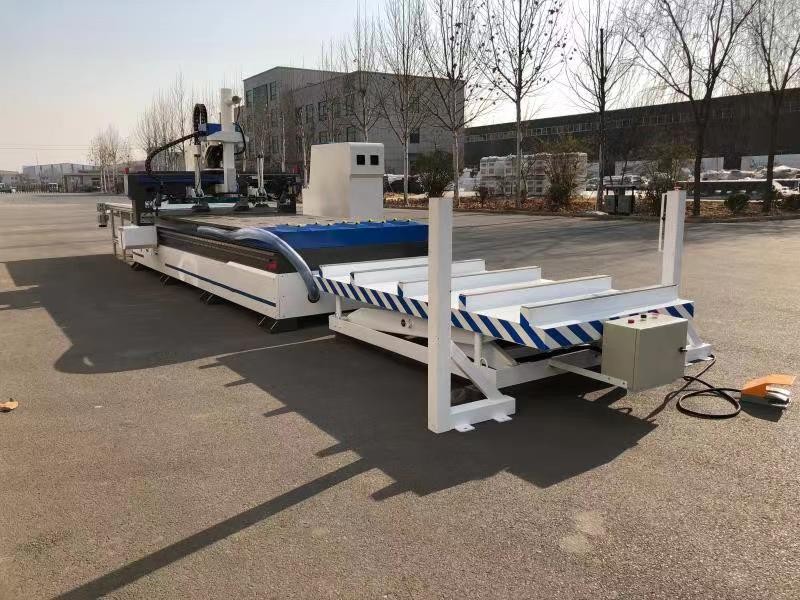

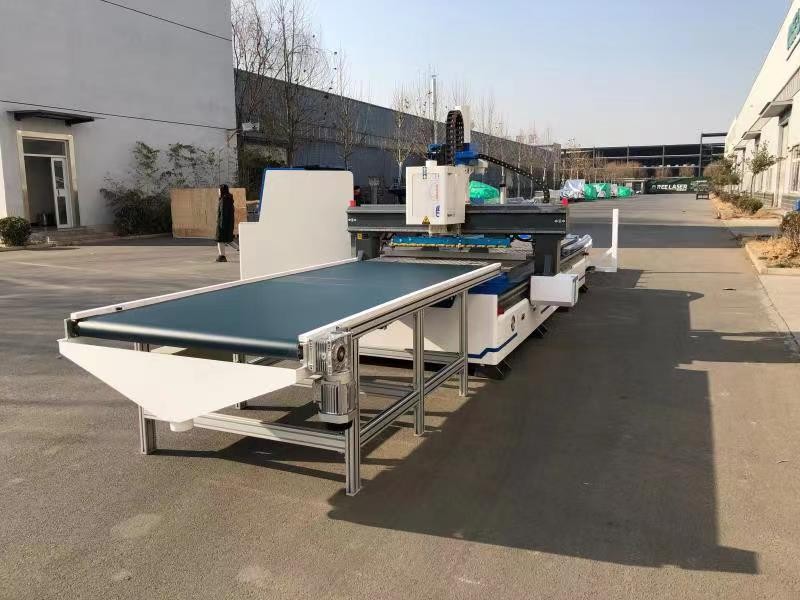

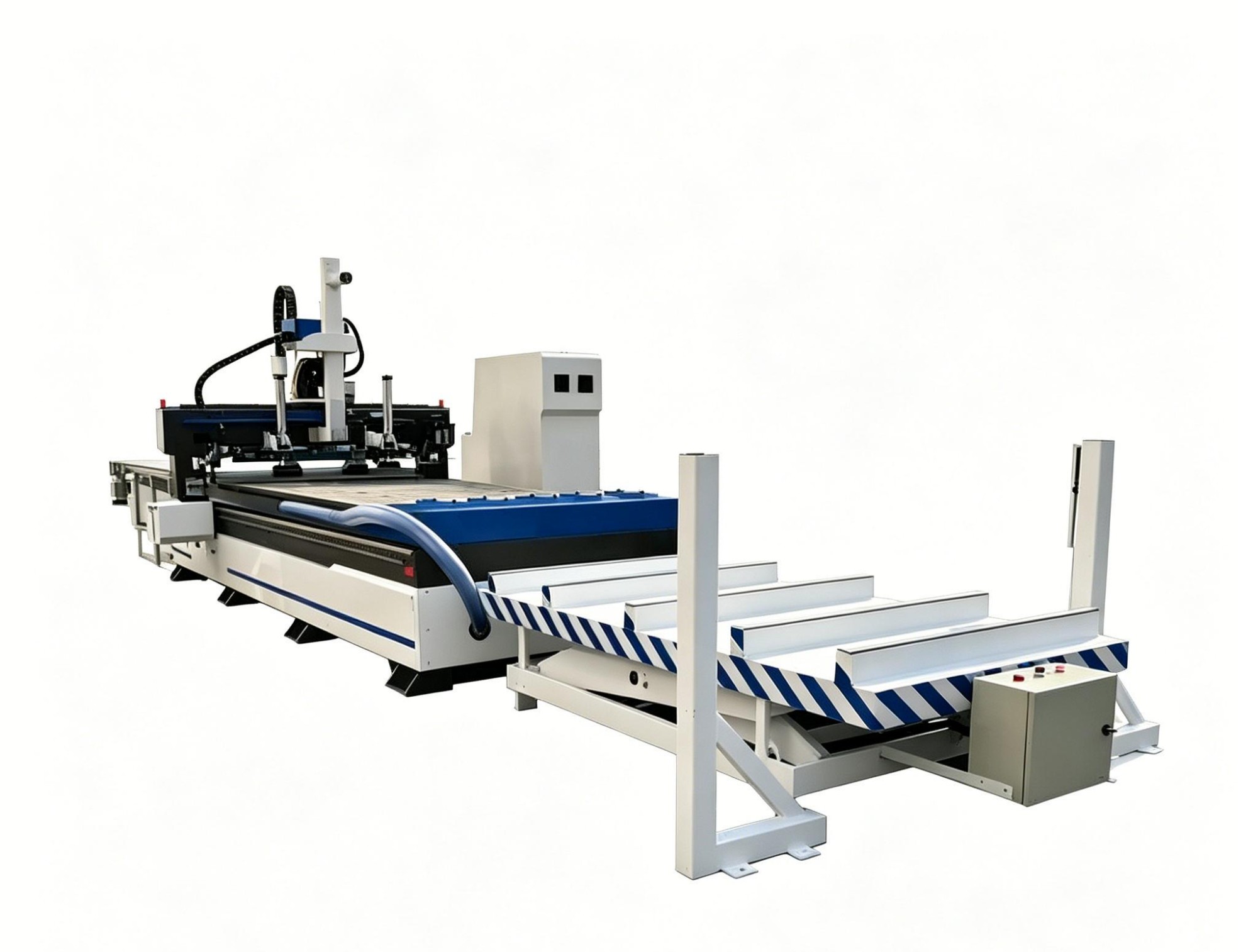

ATC CNC Router With Oscillating KnifeATC CNC Router With Oscillating Knife

ATC CNC Router With Oscillating Knife

Product Description:

CNC Oscillating Knife Cutting Machine Features


  • Auto tool Changer CNC router machine is with a 10 positions automatic tool changer which provides an easy and convenient method of running jobs requiring multiple routing tools.

  • Using linear guide rails to ensure the machine’s positioning accuracy and can withstand larger loads.

  • Oscillating knife: Especially suitable for cutting flexible material PVC, KT board, thick foam, aluminum-plastic board, polypropylene hollow board, footpad, leather.

  • V-cut tool: Using the V-Cut tool, the grooves can be adjusted to specific cutting requirements. Available angles are 0°, 15°, 22.5°, 30°, 45°. Industrial CNC cutters are mainly used for V-groove production of thicker carton board materials such as honeycomb board, cardboard, corrugated board, gray board, etc.


Parameter Data:

Model

SUPER-ATC-2030

Working area

2030*3100*200mm

Machine Body

T-type Welding Structure

Gantry

Steel Structure

Worktable

Vacuum Suction with T-slot Table

Spindle

HQD 9.0kw Air Cooling Spindle

Tool changer

12 straight line change knives

Custom Configuration

Press wheel, vibrating knife and inclined knife

Speed Speed

18000rpm

Guide Rails

Taiwan HIWIN

Ball Screw

Taiwan xinyue

Driver

DORAN Servo Drive and Motor

Reducer

Japan SHIMPO

Inverter

Fuling

Electrical Components

France SCHNEIDER

Vacuum pump

7.5kw

Control System

XDW system

Working Voltage

380V/50Hz

CNC Oscillating Knife Cutting Machine
